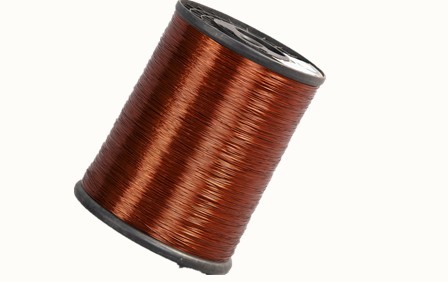

155 Enameled Aluminum Round Wire

Model: QZL-1,2,3/155 PEW 155

Description:

The product has excellent properties of mechanical strength .film adhesion and solvent resistance,light weight and flexibility.lt is widely used in transformers, inductors, ballasts.electrical appliances, deflection coils in display,anti magnetized coils,induction cooker,microwave oven,reactor,etc.

Technical details

Advantage:


Appearance                                           Uniform color smooth surface



Elongation                                             26%



Mandrel windingtest                                  Elongation 3d No Film-cracking



Peel test                                                No Film-cracking after layup



Heat shock                                            Elongation 3d 175℃ 30min No Film-cracking



Cut through temperature                       2min 240℃No Breakdown



Breakdown voltage                                4.4KV



Scrape-resistance                                  Min Average 3.05N Min 3.60N



Solvent Resistance                                Standard solvent>1H



Continuity of covering                           ≤5个/30m


UL Certification
SGS Report
ISO9000 Certification
