180 Aluminum Enamelled Wire

Model: QZYL-1,2,3/180 EIWAL/180

Description:

YD 180 AL, is polyesteramide enameled aluminum wire belonging in H (180°C) thermal class, able to be manufactured in the diameter range of 0.204.00 mm. Provides advantage due to the low density of aluminum in cases where weight is more important than volume.


Technical details

Available:

Providing thermal resistance up to 180°C,  YD 180 also possess the features of good resistance against dipping varnishes, casting resins, solvents and thermal shock performances.

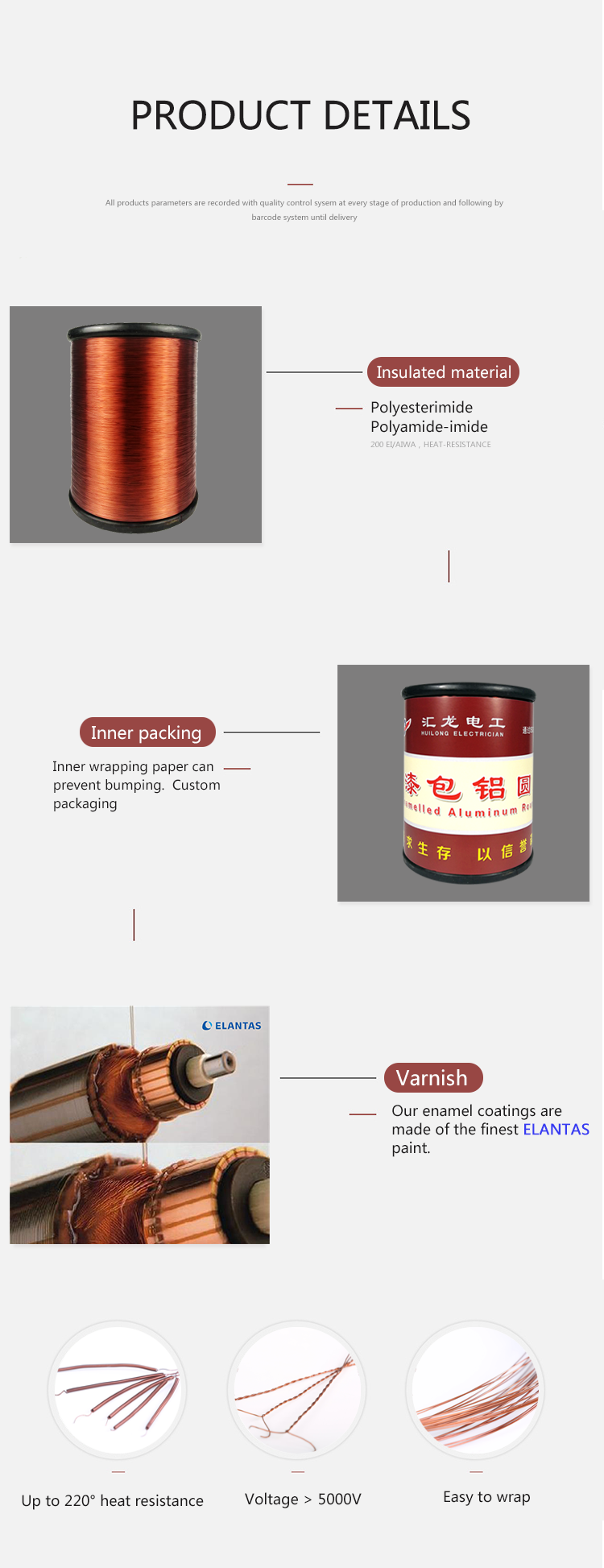

Fields of Use:产品封面图.jpg

lRefractory transformer

lHermetic machine

lMotors of the power tool

lVoltage regulators

lVarious types of magnet-coils

lGeneral purpose electric motors





Advantage:

l All products parameters are recorded with quality control system at every stage of production process and following by barcode system until delivery.

l Our products receive approval with production parameters of quality control system according to standards of GB/T23312.7 2009, IEC60317-25, NEMA 35.




Thermal Class (°C)

Class C, 180 °C

Insulation | Base Coat

Polyester-imide

Insulation | Top Coat

Polyamide Imide

Insulation | Bong Coat

-

Production Range (MM) (MM)

0.20 - 4.00 mm

Certification I.E.C

IEC 60317 - 25

UL File No.


Class Temperature (°C)

180 °C

Heat Shock (°C)

≥200 °C

Cut Through Temperature (°C)

≥ 300 °C

Solderability (°C)

Non solderability

Bonding Temperature (°C)

Not Applicable

Re-softening Temperature (°C)

Not Applicable

Normal Solvent Resistance

≥H

Resistance to humidity

Excellent

Resistance to Impregnants

Yes

Resistance to Refrigerants

Yes



Distinct Features

Better weight ratio compared to copper, price advantage, ease of winding

due to soft and flexible structure.


UL Certification
SGS Report
ISO9000 Certification
