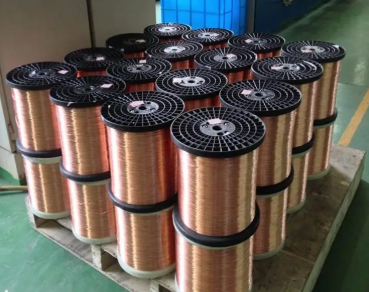

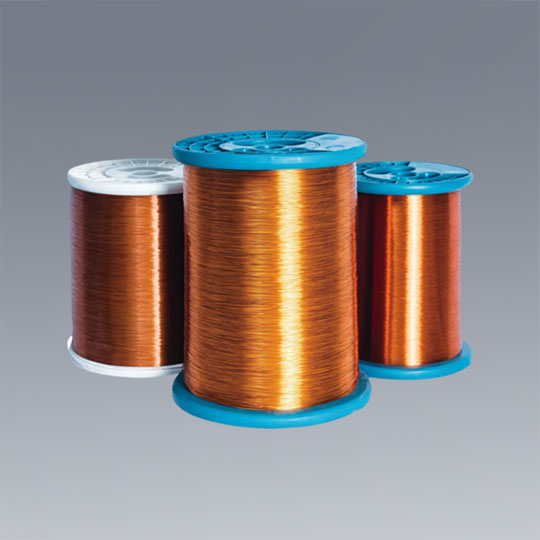

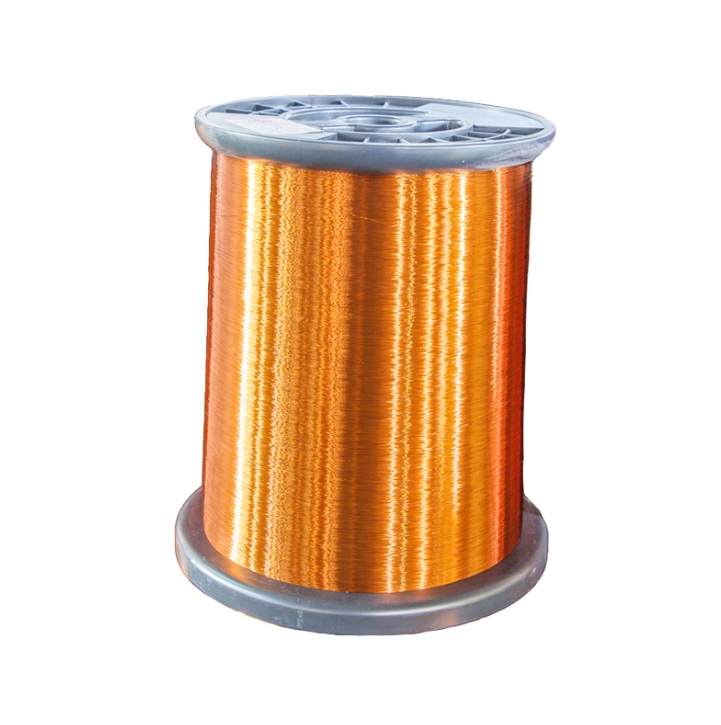

220℃ C Enameled Copper Round Wire

Dimensions               : 0.08mm to 3.50mm

Applications

Oil transformers

Transformers with casting resin

General purpose electric motors

Voltage regulators

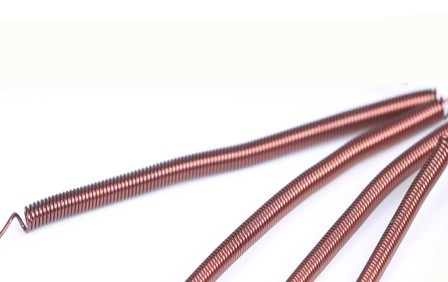

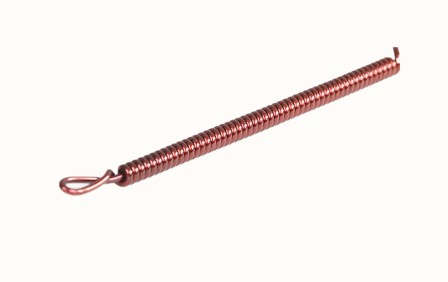

Various types of coils

Mechanical Properties (For 0.3mm)

THERMAL CLASS (°C)                      Class HC, 220 °C

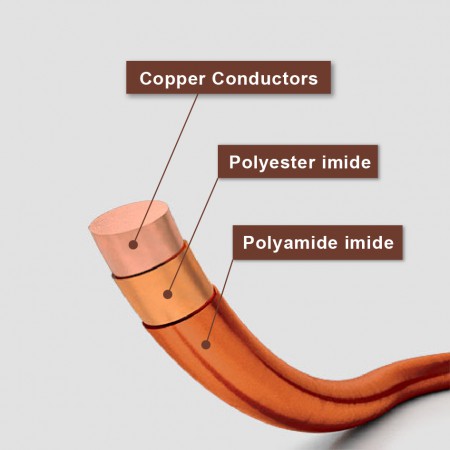

INSULATION | BASE COAT                   Polyester imide

INSULATION | TOP COAT                     Polyamide Imide

INSULATION | BOND COAT       -

PRODUCTION RANGE (MM) (MM)      0.05 - 3.00 mm

CERTIFICATION I.E.C                             IEC 60317 - 13

UL FILE NO

CLASS TEMERATURE (°C)                      220 °C

HEAT SHOCK (°C)                                  ≥ 240 °C

CUT THROUGH TEMPERATURE (°C)      ≥ 340 °C

SOLDERABILITY (°C)                               Non solderability

BONDING TEMPERATURE (°C)               Not Applicable

RE-SOFTENING TEMPERATURE (°C)         Not Applicable

NORMAL SOLVENT RESISTANCE          5H

DIPPING VARNISH RESISTANCE            Very Good

REFRIGERANT RESISTANCE                   Very Good

TRANSFORMER OIL RESISTANCE          Very Good

DISTINCT FEATURES                              Generator, Electromechanical, Motors

FIELDS OF USE                                      Excellent resistance to the dripping polyesters for

fluorescent lamp reactors, High resistance to solvents, High thermal resistance (220°C)

Keywords: Magnet wire, enameled wire, coil, copper wire, aluminum wire, Flat wire, ECCA,Copper clad Aluminum

Model: EI/AIW
