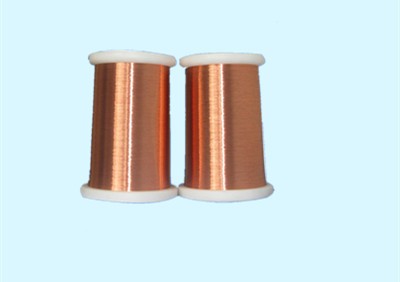

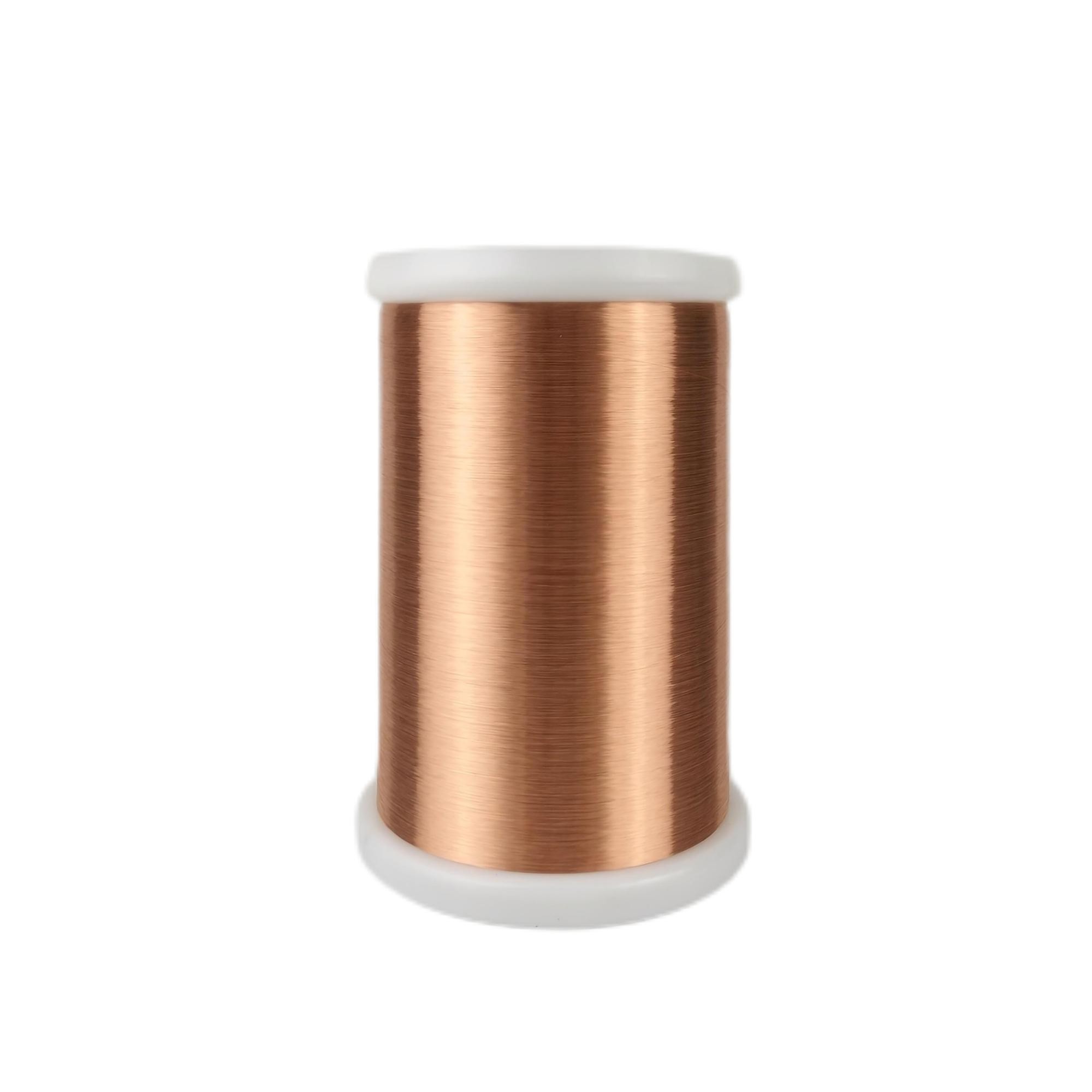

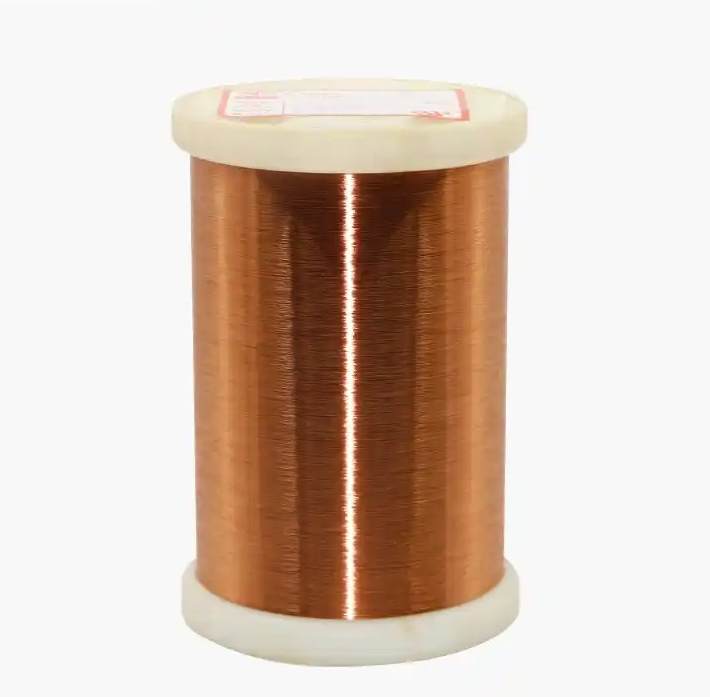

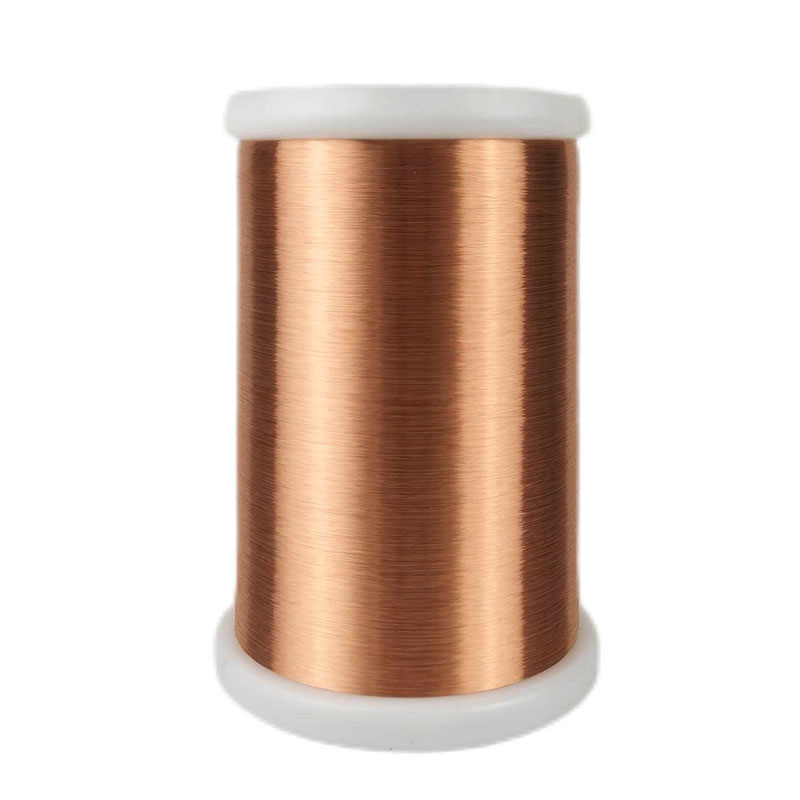

155°C F Enameled copper Round Wire

Model: UEW/155

Description:

YD 155 is enameled copper wire belonging under F (155°C) class, able to be manufactured in the diameter range of 0.05 – 1.6 mm. Providing thermal resistance up to 155°C and good mechanical strength, YD 155 also possess a good winding performance.

Technical details

Standards

IEC 60317-0-1:2014

Insulation Coatings : Polyurethane 155

Dimensions : 0.05mm to 1.6mm

Applications

Suitable for automated soldering equipment used for

production/manufacturing of small motors, transformers,

relays and magnet coils.

Mechanical Properties (For 0.3mm)

Elongation : >30%

Springiness :<45

Adherence – Flexibility : Excellent

Resistance to Abrasion : >17.75N

Electrical Properties

Breakdown Voltage: 7kV

Thermal Properties

Temperature Index: 155

Cut through: 2min ≥ 200 ℃

Heat Shock: 1d, 1/2h ≥175 ℃

Chemical Properties

Solvent Test: 4H

Solderability: 390°

Resistance to Refrigerants : -

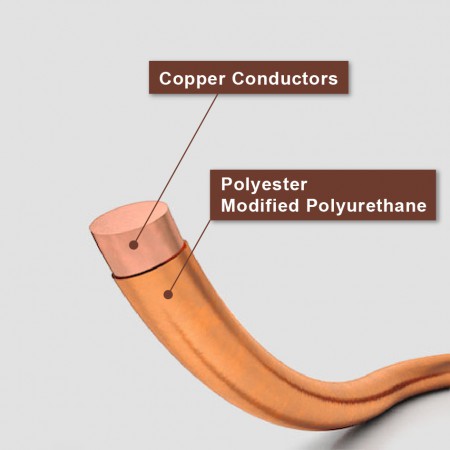

Bare Conductor – Copper Characteristics (Annealed Condition)

Electrical Resistivity @ 20°C 0.017241Ωmm²/m Temperature Coefficient @ 20°C : 0.00694°C Specific Weight : 8.89 Gr/cm³ Ultimate Tensile Strength: 22-30 kg/mm²

Primary Insulation Colour : Transparent / Natural
