Electromagnetic coil

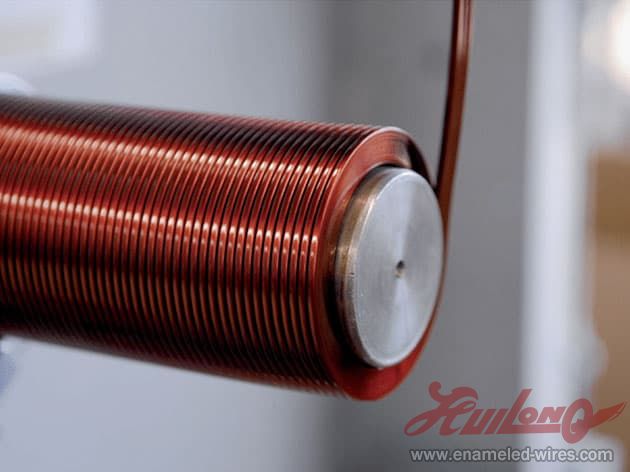

An electromagnetic coil, often referred to as a coil, is an essential component in various electrical and electronic devices. Its basic structure consists of a conductor (usually wire) wound into a coil shape. When electric current passes through the coil, it generates a magnetic field. The strength and characteristics of this magnetic field depend on factors such as the number of turns in the coil, the current passing through it, and the presence of a core material within the coil.

Key Aspects of Electromagnetic Coils

1. Function: Electromagnetic coils are used to create magnetic fields, which can be employed for various purposes like inductance, electromagnets, transformers, solenoids, and even in electrical motors and generators.
2. Core Types:
   • Air Core: Coils without any core material (i.e., air-core coils) have lower inductance and are often used in high-frequency applications.
   • Ferromagnetic Core: Coils with a ferromagnetic core (like iron) have higher inductance and are common in transformers and inductors.
3. Wire Type: The wire used in coils can be copper, aluminum, or other conductive materials, often coated with an insulating layer to prevent short circuits.
4. Inductance: The inductance of a coil is a measure of its ability to store electrical energy in a magnetic field. It’s influenced by factors like the number of turns in the coil, the coil’s diameter, the type of core material, and the arrangement of the turns.
5. Applications:
   • Transformers: In transformers, coils are used to transfer electrical energy between circuits through electromagnetic induction.
   • Motors and Generators: Coils in motors and generators facilitate the conversion of electrical energy to mechanical energy, and vice versa.
   • Solenoids: In solenoids, coils are used to create a controllable magnetic field, often for the purpose of generating linear motion.
   • Inductors: As inductors, coils are used in electronic circuits to store energy, filter signals, and perform impedance matching.
6. Design Considerations: When designing an electromagnetic coil, factors such as the desired inductance, the current carrying capacity, the operating frequency, and thermal considerations must be taken into account.

Electromagnetic coils are integral to the functioning of a wide range of devices, from simple inductors in electronic circuits to complex components in electrical machines. Their design and implementation are key to the performance and efficiency of these devices.
