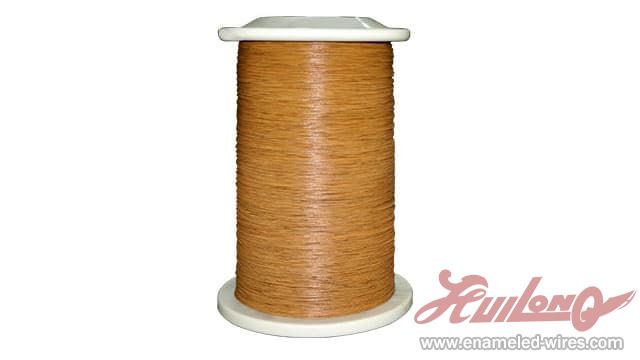

Fiber Glass Covered Aluminum Round/Flat Wire

Fiber Glass Covered Aluminum Round/Flat Wire

1.Conductor : aluminum

(1)High conductivity (2)Good solderability (3)High ductility

2.Shape：round

(1)Diameters：ranging from 2.0 to 7.0mm, which translates to 12 - 1 AWG or 14-1 SWG

Shape: retangular

(2)Diameters(mm): a:1-10,b:3-35

3.Enamels:

NO1089:polyester/NO1055A:oil-modified/NO1079:PETG/NO1051:diphenyl oxide of different temperature classes：130/155/180

4.Layers:

single and double

5.Insulation thickness(retangular):

(1)single:0.3/0.4/0.5 (2)double:0.2/0.3/0.4/0.5 (3)fiber and film covered:0.4/0.5/0.6

6.Standards:

IECNEMAJISGB,such as IEC 60 317, NEMA MW 1000 or JIS C 3202

7.Properties:

(1)High voltage and temperature (2)High resistance to abrasion (3)Electromechanical properties (4)Good adhesion, anti-moist

8.Applications:

large and medium high-voltage electrical machine.

Specifications
