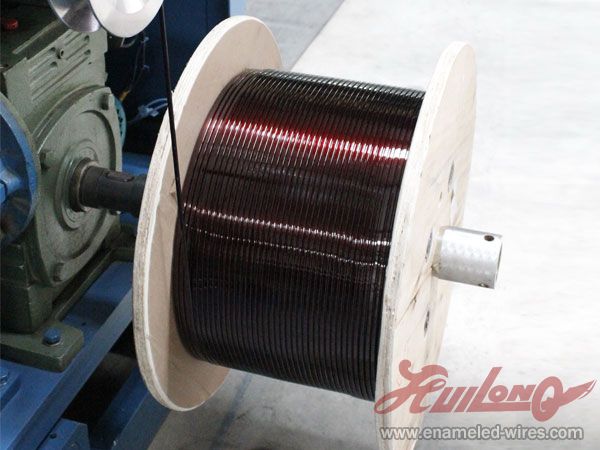

Flat Enamelled Aluminium Wire

Flat Enamelled Aluminium Wire ► Tech information form of Flat Enamelled Aluminium Wire:

Thermal class: B(130°C), F(155°C), H(180°C), H(+200°C), C(220°C), C+(240°C)

Rectangular size: A: 1mm-10mm b: 3mm-16mm

Product standard: IEC/NEMA/JIS/GB

Applications: compressor motors, air-conditioning motors, washing machine motor, explosion-proof motors, the motor windings sealed

Delivery time: 10 days-30days

Package: wooden spool or as your requirement

Price term: FOB/CIF/CNF/DDU/DDP

Flat Enamelled Aluminium Wire ► Usage of Flat Enamelled Aluminium Wire:

Enameled Aluminum Winding Wire is used in manufacturing ARC welding machines. it is applicable to all types of large and medium-sized electrical machinery, transformer , generator, electrical motor windings, exhaust fan, Air-conditioner, washing-machine, compressor, deflection yoke etc.

Flat Enamelled Aluminium Wire ► Product types of Flat Enamelled Aluminium Wire:

1. Thermal class:130, 155, 180, 200, 220 degree

1) Polyester enameled aluminum wire, class 130

2) Modified polyester enameled aluminum wire, class 155

3) Polyesterimide enameled aluminum wire, class 180

4) Polyester (imide) coated with polyamide-imide enameled aluminum wire, class 200

5) Polyimide enameled aluminum wire, class 220

Flat Enamelled Aluminium Wire ► The advantages of Flat Enamelled Aluminium Wire

a. Compared with the copper enameled wire, enameled aluminum wire is easier to winding, also there is a solid oxide film on the surface of enameled aluminum wire, which make it has a good insulating effect, a long life.

b. Due to the good insulating effect of aluminum film layer, its heat-resistant temperature can be 20 degrees higher than the copper wire;

c. The greatest benefit of using aluminum is that it is 1 / 3 lighter than copper which significantly lower the production costs, second it can attach to the solids easily, and third it can also reduce the freight and transportation during the operation.

Flat Enamelled Aluminium Wire ►Specifications
