The secret behind enameled wire’s temperature resistance spanning 150°C to 220°C lies in the evolution of materials science and technology.

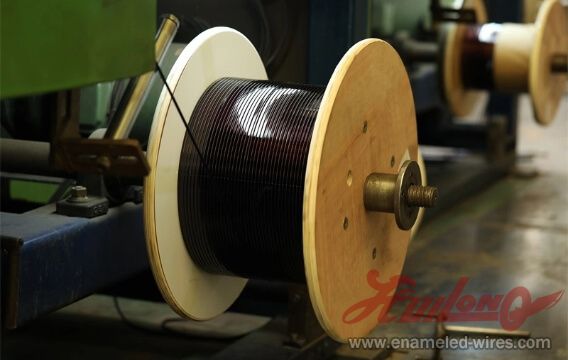

In the inner workings of electrical equipment, enameled wire acts like a pervasive “neural network,” carrying out the core mission of converting electrical and magnetic energy. The thin, almost cicada-wing-thin insulating varnish on its surface not only determines the insulation reliability of the circuit but also directly defines the temperature limit that the entire motor or transformer can withstand. The temperature resistance span from 150°C to 220°C is not a simple game of numbers. It is a magnificent story of the coordinated evolution of materials science, chemical synthesis, and precision manufacturing.
The temperature resistance grade of enameled wire does not refer to the maximum temperature it can withstand instantaneously, but rather a systematic evaluation metric based on the theory of “thermal aging.” International standards (such as IEC 60172) stipulate that the “thermal life” is defined as the time it takes for enameled wire samples to be baked at a specific temperature for a long period of time, until their insulation properties (such as withstand voltage and adhesion) drop to half their initial values. By testing at multiple temperature points, the highest temperature the enameled wire can stably withstand over a period of 20,000 hours (approximately 2.3 years) is calculated, representing the product’s heat resistance grade.
Thus, the leap from 150°C (corresponding to heat resistance grade F) to 220°C (corresponding to heat resistance grades H+ to C) essentially represents an exponential extension of the material’s heat life at high temperatures. This is driven by three core technological breakthroughs.
Insulating varnish is essentially a high-performance polymer, whose heat resistance is directly dependent on the strength of its molecular chains.
1. 150°C Grade (Polyester Resins, such as PET): The molecular backbone of this material is connected by ester bonds, resulting in relatively low bond energies. Under sustained high temperatures, ester bonds are susceptible to hydrolysis or thermal cracking, leading to molecular chain breakage, gradual powdering of the paint film, and loss of insulation.
2. 180-220°C Grade (Polyimide and Polyamide-Imide Resins):** This is the key to achieving high-temperature resistance. Taking polyimide (PI) as an example, its molecular backbone contains numerous stable aromatic and imide rings, forming a rigid structure similar to a “rebar mesh.”
High bond energy: Chemical bonds such as C-N and C-C have much higher energies than ester bonds and require higher energies to break.
Conjugated stability: The aromatic ring structure ensures a uniform electron cloud distribution, resulting in low molecular internal energy and resistance to thermal excitation and breakage.
Crosslinking density: A higher degree of crosslinking allows the molecular chains to be more tightly linked. Even if individual links are damaged, the overall paint film structure remains stable.
This molecular-level “strengthening” is the fundamental basis for improved temperature resistance.
Single organic resins still have weaknesses at high temperatures. Scientists have used “nanocomposite technology” to infuse them with “armor.”
1. Inorganic Nanoparticle Filling: Nanoscale inorganic fillers such as alumina and silica are uniformly dispersed within the polymer matrix. These fillers inherently possess extremely high temperature resistance (>1000°C). They act like billions of tiny “heat shields,” effectively blocking direct heat transfer and hindering the thermal motion of molecular chains.
2. Synergistic Effect: When the paint film is heated, the inorganic fillers capture free radicals generated by thermal degradation, terminating the chain reaction and slowing the aging process. They also enhance the mechanical strength of the paint film and prevent microcracks caused by thermal expansion and contraction.
“Excellent materials” require “excellent processes” to create “excellent products.”
1. Multi-layer Composite Structure: High-end enameled wire often utilizes a multi-layered “primer + topcoat” structure. For example, the inner layer uses polyamide-imide (PAI), a material with strong adhesion, and the outer layer uses polyimide (PI), a material with excellent heat resistance, achieving both rigidity and flexibility, balancing adhesion and temperature resistance.
2. Precision Curing: After painting, the wire undergoes high-temperature curing in a “baking tunnel” dozens of meters long. The temperature profile must be precisely controlled to ensure complete solvent evaporation and sufficient resin cross-linking without causing charring due to overheating. For 220°C-rated products, the curing temperature and time control is far more stringent than for 150°C products.
The transition from 150°C to 220°C is a critical step in transforming enameled wire technology from “affordable” to “high-performance.” It enables the rapid development of motors and transformers towards smaller size, higher power, and longer life. It has become an indispensable core material, particularly in extreme operating conditions such as new energy vehicle drive motors, high-speed rail transit, aerospace, and wind and photovoltaic power generation. Every breakthrough in the temperature resistance of this micron-level paint film embodies mankind’s continuous exploration and transcendence of the limits of materials, and continues to drive the electrification era forward.
