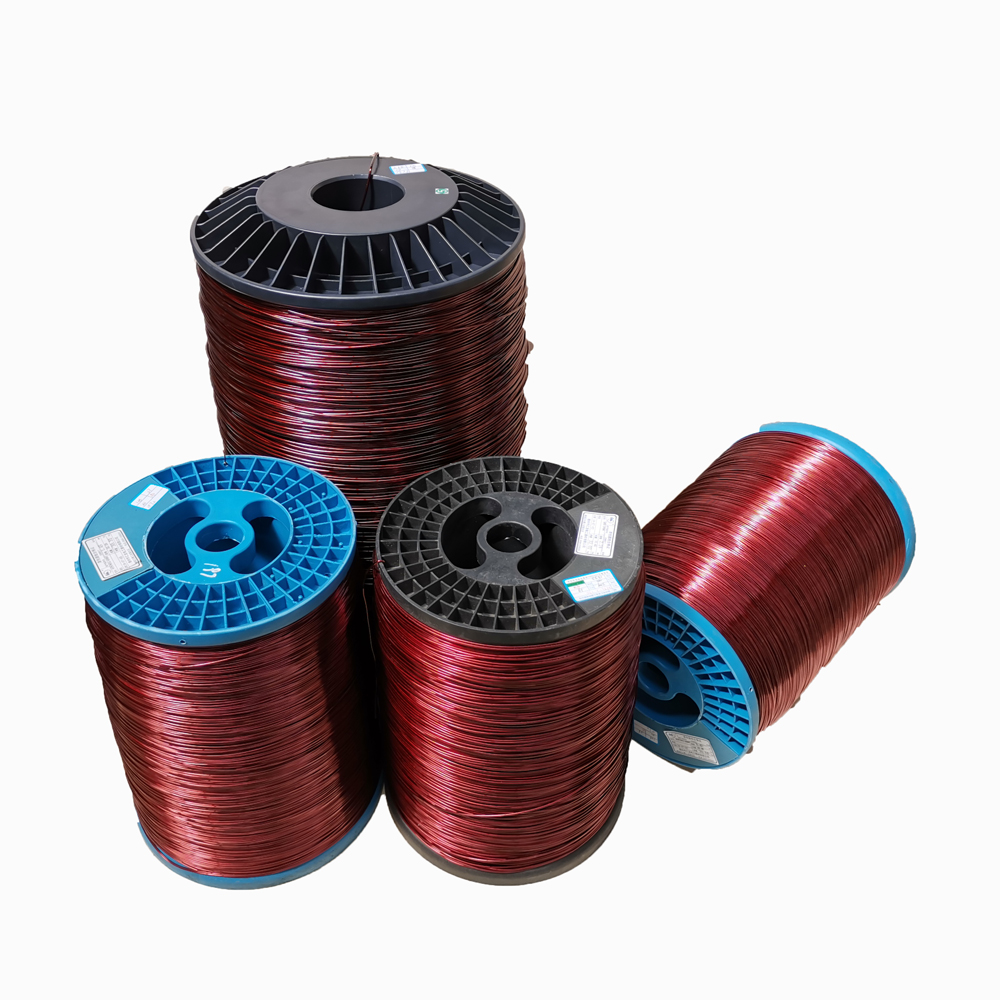

200°C C Aluminum Enameled Round Wire

Insulation | Base Coat

Polyester-imide

Insulation | Top Coat

Polyamide Imide

Insulation | Bong Coat

-

Production Range (MM) (MM)

0.20 - 4.00 mm

Certification I.E.C

IEC 60317 - 25

UL File No.

Class Temperature (°C)

200 °C

Heat Shock (°C)

≥ 220 °C

Cut Through Temperature (°C)

≥ 320 °C

Solderability (°C)

Non solderability

Bonding Temperature (°C)

Not Applicable

Re-softening Temperature (°C)

Not Applicable

Normal Solvent Resistance

≥H

Resistance to humidity

Excellent

Resistance to Impregnants

Yes

Resistance to Refrigerants

Yes

Distinct Features

Better weight ratio compared to copper, price advantage, ease of winding

due to soft and flexible structure.

1.excellent bendingproperty
2.high flexibility of the enamel
3.good resistance to abrasion
4.high mechanical property

1.higher thermalproperty
2.excellent bendingproperty
3.high flexibility of the enamel
4.good resistance to abrasion
5.high mechanical property

1.higher thermal property
2.suitable for windings that are subjected
to constantly high temperature and mechanical stress
3.good chemical resistance

1.excellent thermalresistance
2.suitable for windings that are subjected to constantly high temperature and mechanical stress
3.good chemical resistance
4.good resistance to refrigerant

1.excellent thermal resistance suitable for any electric equipments that are constantly exposed to high working temperature
2.outstanding mechanical and chemical property
3.good performance against radiation

1.dry & oil-immersed transformer
2.electrical equipment

1.dry & oil-immersed transformer
2.electrical equipment

1.winding of high and low voltage DC/AC motor
2.magnet coil
3.dry & oil-immersed transformer

4.winding of high and low voltage DC/AC motor
5.magnet coil
6.dry & oil-immersed transformer
7.automobile coil8.train coil

1.winding with service temperature up to 220°C
2.motor and generator for aviation and marine application
3.nuclear industry
4.winding requiring high reliability
