Enameled Wires Description

Flat Magnet Wire

Views :
Publication Date : 2025-06-22

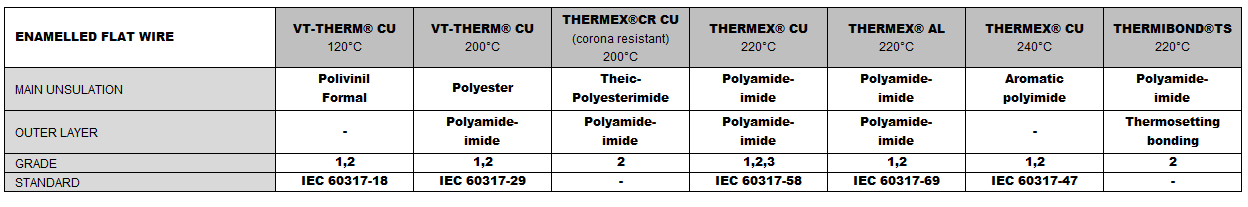

Characteristics

Temperature indexes up to 240°C for electrical and magnet coils, transformers, motors, small industrial and wind turbine generators.

Self-bonding wires that enable the motor or generator manufacturer to avoid using impregnation varnishes and thus to reduce manufacturing time cycles.




Copper

cross section range:  from 1.50mm² up to 100 mm², subject to thickness and width ratio.

Aluminium

cross section range: from 10mm² up to 100mm². The lower range is still going to be extended.


Advantages:

  • Different types of enamel with very good mechanical strength and bonding properties
  • Very consistent quality and dimensional tolerances per industry standard
  • Wide range of dimensions (very small to very large flatwire cross sections)
