Enameled Wires Description

Plate Magnet Wire

Views :
Publication Date : 2025-06-26

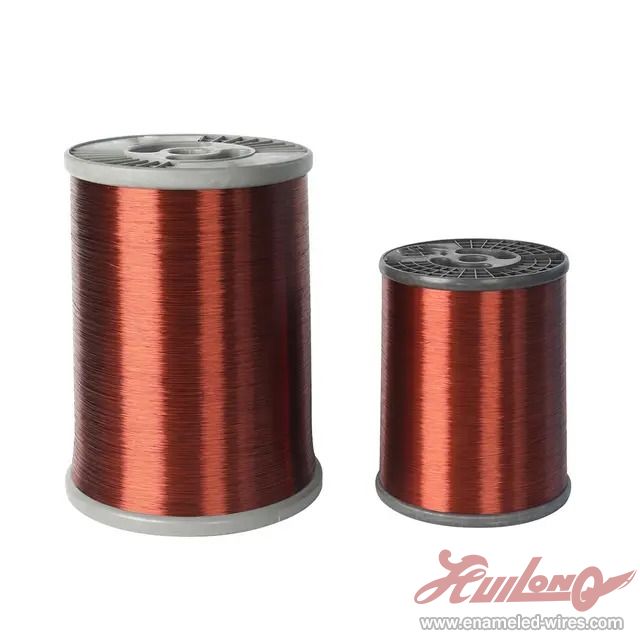

Plate Magnet Wire

The enameled rectangular copper wire produced by our company can be applied to the winding coils of drive motors, transformers, motors, generators and various electrical devices of new energy vehicles. If you are searching for dependable enameled wire supplier, don't hesitate to contact us to get the latest price!

Plate Magnet Wire Performance Advantages


Excellent conductivity and thermal stability

Scratch resistance

Solvent resistance

Good resistance to heat dissipation when wound into a wire

High magnetic field efficiency


Plate Magnet Wire Certifications

IATF16949RUROHSDUNISO9001ISO14001ISO45001

Plate Magnet Wire Performance Parameter


Thermal levelModel

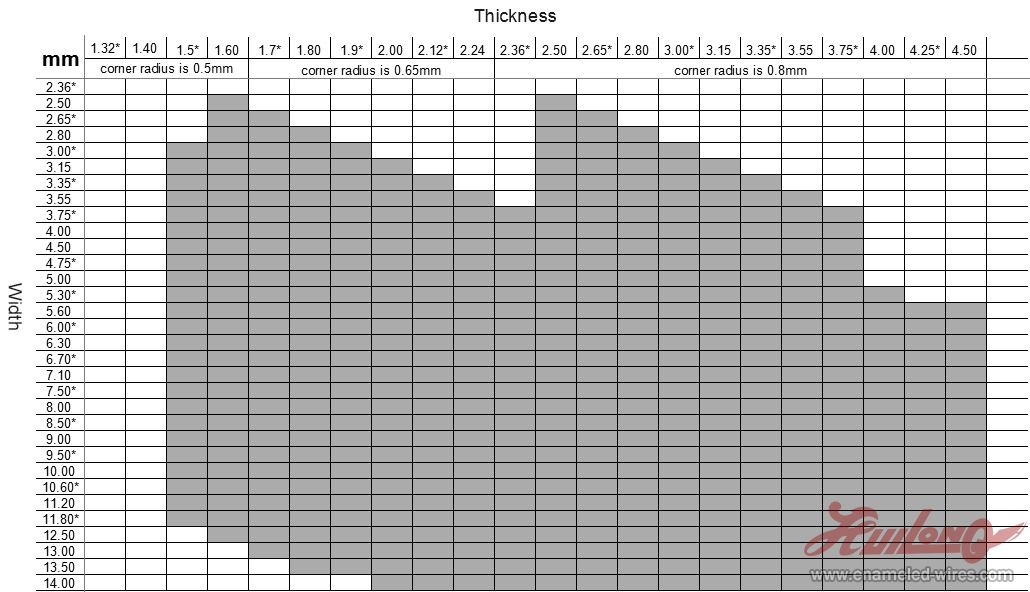

Specifications range

Standard

codelevelnamemodelmm²IECGB/TNEMAJIS
B130Class 130 polyester enamelled copper flat wireQZ B-x/1301.5mm²-15mm²


1.2:1≤Width width ratio≤8:1

603177095.7-*
F155Grade 155 polyester enamelled copper flat wireQZ B-x/1551.5mm²-15mm²


1.2:1≤Width width ratio≤8:1

60317-167095.3-*
H180Polyester imide enamelled copper flat wire, class 180QZYB-x/1801.5mm²-15mm²


1.2:1≤Width width ratio≤8:1

60317-287095.4-*
C200/220Grade 200 polyester imide / polyamide imide composite enamelled copper flat wire grade 220 polyamide imide enamelled copper flat wireQ(ZY/XY)


B-x/200QXYB-X/200

1.5mm²-15mm²


1.2:1≤Width width ratio≤8:1

60317-297095.6MW36-C*
C240Class 240 polyimide enamelled copper flat wireQYB-x/2401.5mm²-15mm²


1.2:1≤Width width ratio≤8:1

60317-477095.5MW20-C*

Note: "*" for approximate American wire gage
