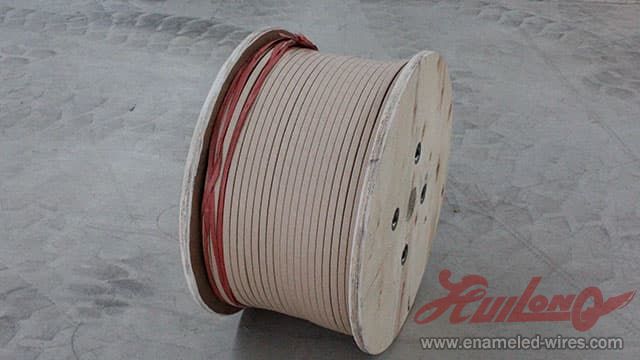

Paper Covered Copper Round/Flat Wire

Paper Covered Copper Round/Flat Wire 1.Conductor : copper

(1)High conductivity

(2)Good solderability

(3)High ductility

Paper Covered Copper Round/Flat Wire 2.Shape：round

Diameters: ranging from 2.0 to 7.0mm, which translates to 12-1 AWG or 14-1 SWG

  Shape: retangular

Diameters(mm): a:1-10,b:3-35

Paper Covered Copper Round/Flat Wire 3.Insulation paper:

Telephone paper /Electric cable/Nomex paper

Paper Covered Copper Round/Flat Wire 4.Temperature class:

(1)Telephone paper Electric cable covered: 90105

(2)Nomex paper:200220

Paper Covered Copper Round/Flat Wire 5.Insulation thickness:

(1)Telephone paper covered:0.45/ 0.60/ 0.951.351.601.952.452.95

(2)Nomex paper: double layer overlying or halflap winding

Paper Covered Copper Round/Flat Wire 6.Standards:

 IECNEMAJISGB,such as IEC 60 317, NEMA MW 1000 or JIS C 3202

Paper Covered Copper Round/Flat Wire 7.Properties:

(1)High voltage and temperature

(2)High resistance to abrasion

(3)Electromechanical properties

(4)Anti-moist,anti acid-base corrosion

Paper Covered Copper Round/Flat Wire 8.Applications:

Oil-immersed transformers, Power Transformer,Traction Motor & Transformer, Reactor
